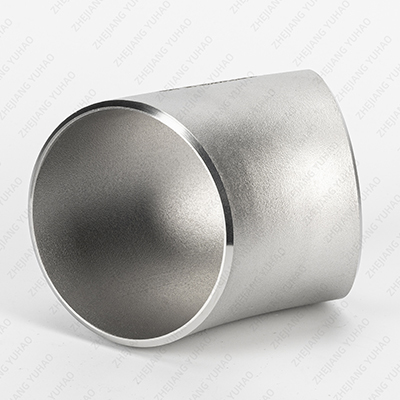

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

Brand Name : YUHAO

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

Wall Thickness : Sch5-SCH160

Standard : ASTM, AISI, GB, DIN, JIS

Surface Finish : Polished, Brushed, Matte, Sandblasted

Material : 304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.

Pipe Fitting Type : Concentric reducer

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding

Diameter Range : DN15-DN900

Corrosion Resistance : High Corrosion Resistance

Package : Wooden box or Pallet or carton

Sizerange : 1/2 inch to 48 inch

End Type : Beveled

Price Term : CIF, FOB, EX-WORK

Contact Now

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes
Product Specifications
Attribute Value
Wall Thickness Sch5-SCH160
Standard ASTM, AISI, GB, DIN, JIS
Surface Finish Polished, Brushed, Matte, Sandblasted
Material 304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.
Pipe Fitting Type Concentric reducer
Connection Type Butt Welded
Application Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding
Diameter Range DN15-DN900
Brand Name Yuhao
Corrosion Resistance High Corrosion Resistance
Place of Origin China
Size 1/2" up to 110"
End Bevel end ANSI B16.25
Package Wooden box or Pallet or carton
This specialized 45-degree reducing elbow provides an efficient solution for piping systems requiring both directional change and diameter transition. Manufactured from 304/316L stainless steel, it eliminates the need for separate reducers and additional fittings, reducing potential leak points and installation time. The precision-engineered design maintains optimal flow characteristics while accommodating pipe size changes.
Technical Specifications:
  • Material Grades: 304, 304L, 316, 316L stainless steel options
  • Size Combinations: 1"×3/4" to 8"×6" and custom combinations
  • Pressure Rating: SCH 10S to SCH 80 compatibility
  • Temperature Range: -30°C to 250°C standard service
  • Manufacturing Process: Cold formed or hot formed per application requirements
  • Standards Compliance: ASME B16.9, ASTM A403, MSS SP-75
Key Applications:
  • Pump suction and discharge lines
  • Process equipment connections
  • Water treatment plant piping
  • Industrial plant expansions and modifications
  • HVAC system main-to-branch transitions
  • Chemical processing unit operations
Design Advantages:
  • Space Optimization: Combines two fittings into one compact unit
  • Flow Efficiency: Gradual transition minimizes turbulence and pressure drop
  • Installation Economy: Reduces welding points and labor costs
  • Maintenance Friendly: Fewer connections mean fewer potential leak points
  • System Integrity: Uniform material composition throughout the fitting
The reducing elbow features precision-machined beveled ends matching both pipe sizes, ensuring perfect alignment and weld quality. Available in both short-radius and long-radius configurations to suit specific space and flow requirements. All fittings undergo dimensional verification, visual inspection, and material certification. Custom combinations and special wall thicknesses can be manufactured to meet project-specific requirements.
Quality Assurance:
  • Material traceability with mill test certificates
  • Dimensional verification to ASME B16.9 tolerances
  • Surface inspection for defects and imperfections
  • Optional NDE testing (RT, UT, PT, MT) per project specifications
  • Positive material identification (PMI) available upon request
Our technical team can provide stress analysis and flow calculations for critical applications. Download our comprehensive dimension tables and pressure rating charts for proper specification. Volume pricing available for large projects with lead time optimization.

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes
